• Extra high precision ceramic ferrule with small concentricity error.
• Connector End Face Geometry parameters such as Apex offset , fiber Height , radius of curvature is tested by Digitally automated Interferometry and complies to IEC Standard.
• Durability , Damp proofing , resistance to coupling stress , high pull tension and adaptation to different harsh environment such as dampness , extreme temperature , Impact and Vibrations is in accordance to EIA/TIA and IEC Standard.
• Environmentally stable meeting TIA/EIA 568 requirements.

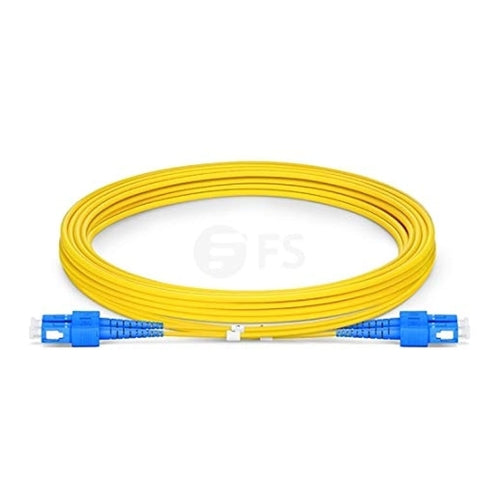

• Connector Types : SC / APC polished
• Jacket Rating : UL OFNR Riser (Low Smoke Zero Halogen Flame Retardant )
• Single mode cable.
• Used for Ethernet, FDDI, Fiber optic system, Video transmission, CATV and Cable TV etc.
Specifications
• Diameter of the cordage: 1.6 mm / 2 mm / 3 mm
• Minimum Bending Radius: 30 mm
• Operating Temperature: - 10° C to + 75° C
• Storage Temperature: - 10° C to + 75° C
• Minimum Insertion Life cycles: 500 Times
• Interchangeability: 0.2 dB
• Repeatability (Insertion 500 times): 0.2 dB
