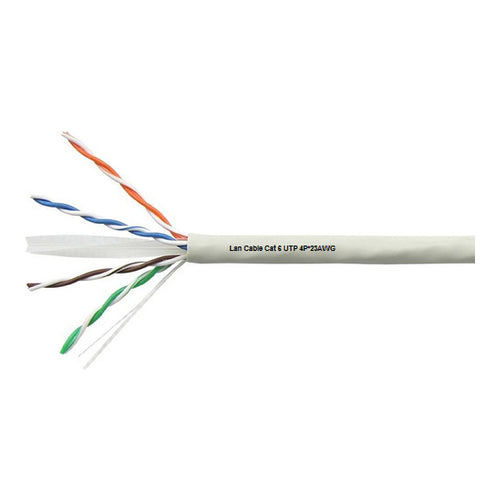

• Transmit data at 1000 Mbps (-1 Gigabit per second) with a frequency of 250 MHz and suitable for 10B ASET, 100BASE-TX Fast Ethernet and 1O00BAS5T/1O00BASETX (Gigabit Ethernet).
• Enhanced performance cable for transmission of high speed data, digital and analogue voice and video (RGB) signals on LANs. Supports Gigabit Ethernet (1000 base-T) standard.
• The mechanical characteristics are perfectly suited for the application in tight cable channels and platforms due to their optimized construction.
Specifications
• Conductor material: Solid Bare Copper
• Construction: HDPE
• Insulation material: HDPE
• Jacket material: PVC/LSZH
• Operating Temperature Range: -20t +75'C
• Conductor Resistance: Max 72.20hm/km at 200 C
• Dielectric Strength: Min AC 1.7KV
• Spark Test: 3.0KV (max)
• DC Resistance unbalance: Max 5%
• Pair-to-Ground Capacitance Unbalance: Max 3300pF/km
• Characteristic Impedance: 100+1-15 Ohm
• Velocity of Propagation (%): 69
• Propagation Delay: Max 536ns/100m
• Dday Skew: Max 45ns/100m
