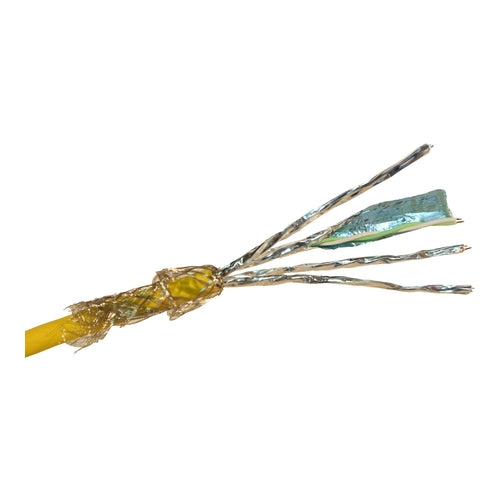

• Category 7 S/FTP : for up to 10 Gigabits per second data rate, shielded cable
• 4 pairs cable
• Low Smoke Zero Halogen materials that emit limited smoke and no halogen when exposed to high sources of heat.
• Euroclass B2ca offers adequate reaction to fire with a certification of compliance from an independent laboratory.
• Power over Ethernet : 802.3 bt PoE++ applications compatible according to installation standards ISO/IEC 14763-2 (final draft) and EN 50174-2 : 2018
• Compliant with ISO/IEC 11801 and ANSI/TIA 568 standards
Specifications
• Conductor material: Copper
• Conductor surface: Bare
• Diameter conductor: 0.56
• Nominal cross section conductor: 0.25
• AWG size: 23
• Conductor category: Class 1 = solid
• Number of cores: 8
• Specification core insulation: Polyethylene (PE)
• Flame retardant according to IEC 60332-3-24 (Cat C): Yes
• Low smoke according to EN IEC 61034-2: Yes
• Halogen free according to EN IEC 60754-1: Yes
• Halogen free according to EN IEC 60754-2: Yes
• Reaction-to-fire according to EN 13501-6: Class: B2ca
• Reaction-to-fire according to EN 13501-6: Smoke production: s1
• Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d1
• Reaction-to-fire according to EN 13501-6: Acidity: a1
