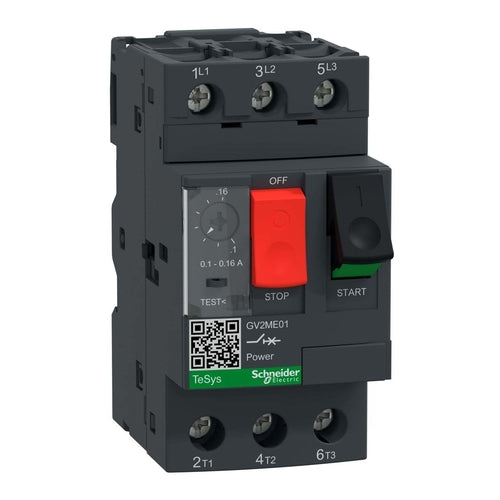

• TeSys GV motor circuit breaker, 3 poles (3P), 0.16A/690V, for 3-phase motor applications less than 0.06kW@400V.
• It provides a thermal-magnetic protection with a thermal setting range 0.1-0.16A, magnetic tripping at 9xIn, high breaking capacity Icu 100kA@400V.
• Start-stop control by push-button guaranteed for 100 000 cycles AC-3.
Specifications
• Product or component type: Motor circuit breaker
• Trip unit technology: Thermal-magnetic
• Poles description: 3P
• Network type: AC
• Installation category: Category A conforming to IEC 60947-2 / AC-3 conforming to IEC 60947-4-1 / AC-3e conforming to IEC 60947-4-1
• Network frequency: 50/60 Hz conforming to IEC 60947-4-1
• [In] rated current: 0.16 A
• Thermal protection adjustment range: 0.1…0.16 A conforming to IEC 60947-4-1
• Magnetic tripping current: 1.5 A
• [Ith] conventional free air thermal current: 0.16 A conforming to IEC 60947-4-1
• [Ue] rated operational voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
• [Ui] rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
• [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-2
