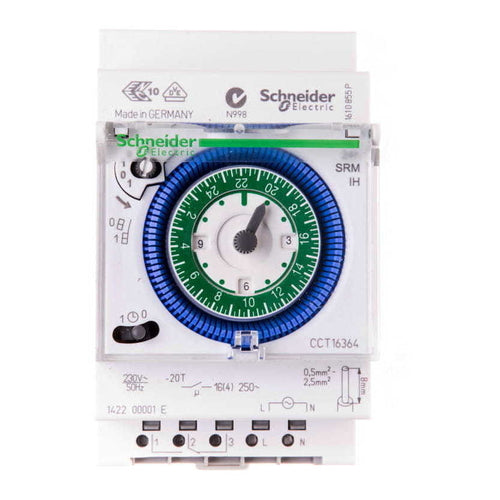

• IH mechanical time switch Width of 54mm (6 modules of 9mm)
• Automatically switches On and Off loads according to the program entered by the user on daily level.
• The minimum time between 2 switching operations is 15 minutes with the number of 48 On and 48 Off Manual override is possible 1 channel output.
Specifications
• Product or component type: Mechanical time switch
• Function available: Manual time changeover
• cycle duration: 24 h
• Maximum number of switching's: 48 on - 48 off
• Minimum interval duration: 15 min
• mounting support: DIN rail
• 9 mm pitches: 6
• Maximum switching current: 16 A - 250 V AC pf = 1 / 4 A - 250 V AC pf = 0.6
• [Ue] rated operational voltage: 230 V AC at 50 Hz
